Control Firefly Lights from Mate Pro

Mate Pro can control Firefly lights when the Mate Pro channel is set to Bond Connect. Bond Connect allows Mate Pro channels to control non-shade devices, including dimmable lights, through a Bond Connect-capable receiver such as Firefly.

Requirements

Before you begin, make sure you have:

• A Mate Pro remote with Bond Connect-compatible firmware
• A Firefly added to the Bond Home app
• The Bond Home app
• A Mate Pro channel configured for Bond Connect

Note: Bond Connect requires firmware version 4.29 or later.

Step 1: Configure a Mate Pro Channel for Bond Connect

1. Open the Bond Home app.
2. Select your Mate Pro.
3. Choose the channel you want to use for the Firefly light.

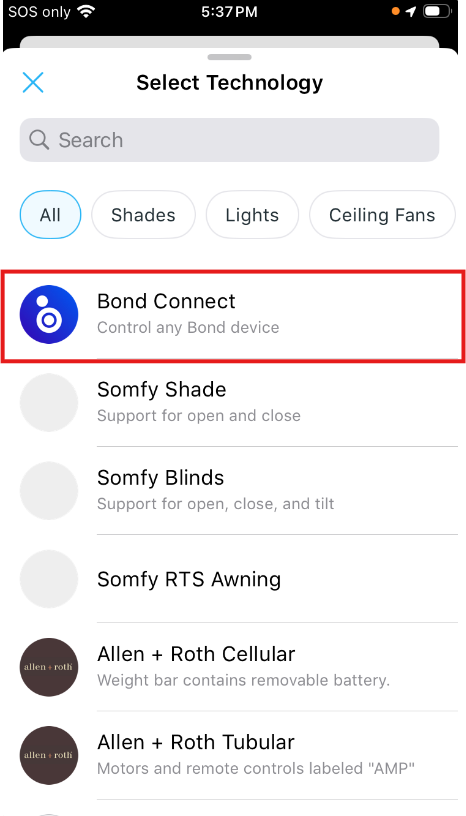

4. Set the channel technology to Bond Connect.





Step 2: Add Firefly to the Bond Home App

1. Open the Bond Home app.
2. Add your Firefly device.
3. Follow the in-app instructions to complete setup.



Step 3: Link the Mate Pro Channel to Firefly

1. In the Bond Home app, select the Mate Pro channel you configured for Bond Connect.

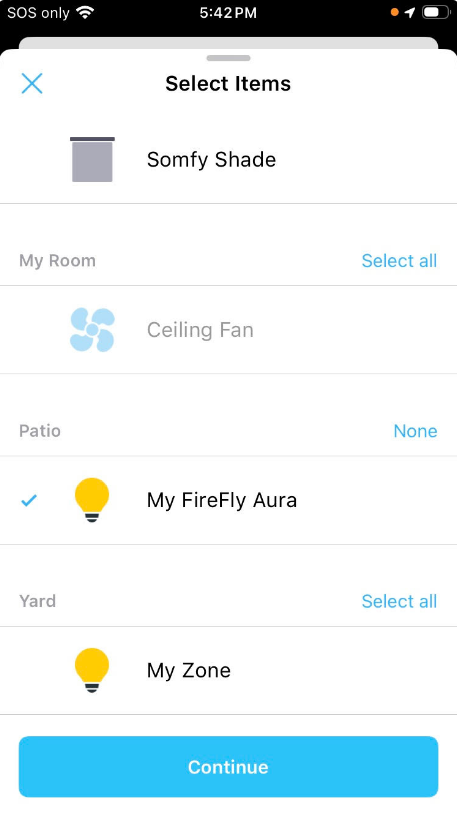

2. Link that channel to the Firefly light.
3. Once linked, Mate Pro will send button commands to Firefly.



Step 4: Control the Light from Mate Pro

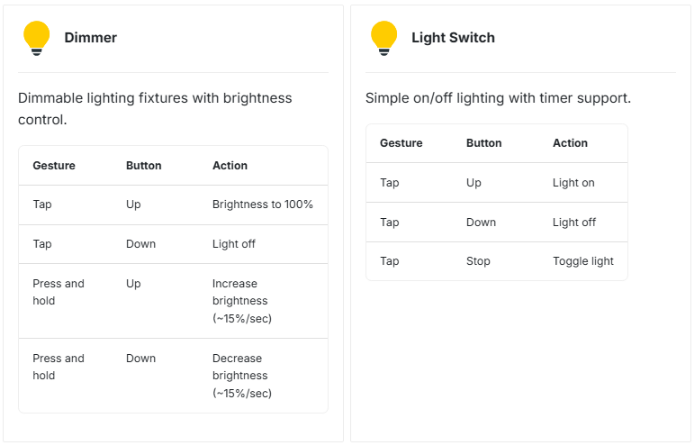

Use the Mate Pro buttons to control the Firefly light:

See also:

The Bond Connect knowledgebase article.



Notes

Bond Connect is one-way communication from Mate Pro to Firefly. Mate Pro will show that it transmitted a command when a button is pressed, but it will not show whether Firefly received the command or whether Firefly is offline or out of range.
