(Bond Bridge & Pro) Shades with slider control

Do you want the ability to use a slider in the Bond Home application to control the shade position.  This feature is available on select motor technologies and varies on how it is enabled.

Calibrate after pairing (Somfy)

Motor technologies using this

Somfy Shades, Somfy Awning, Nice (Green), Gaposa, Alpha Motors, Rollease Basic

Setting Up the Shade

Using the Slider

Calibrating the slider

Setup

1. Select + located at the bottom center in the Android application and top right in the iOS application of Bond Home.
2. Select Remote Control.
3. Select your Bond Bridge Pro.
4. Select Shade & Awning
5. Select Somfy Shade.
6. Select a location for the Shades.

   1. Use one of the suggestions
   2. Create your own using OTHER located at the bottom.
7. Select a Device Name.  Please make sure this is a unique descriptive name as this will be used for integrations.
8. Select CONTINUE.

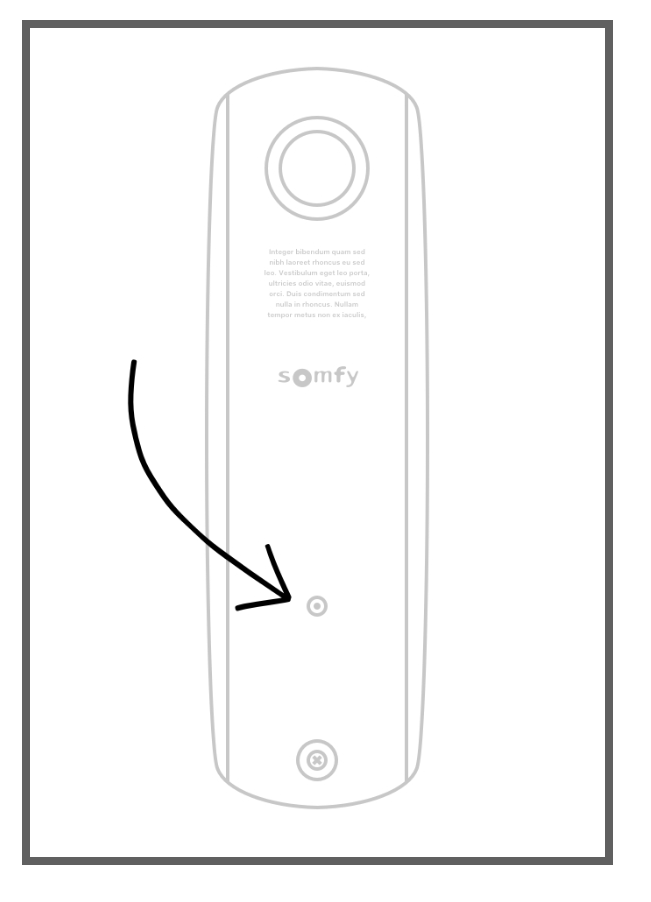

9. Press the programming button on the back of the remote.

10. After the shades briefly move up and down also called jog, select YES!

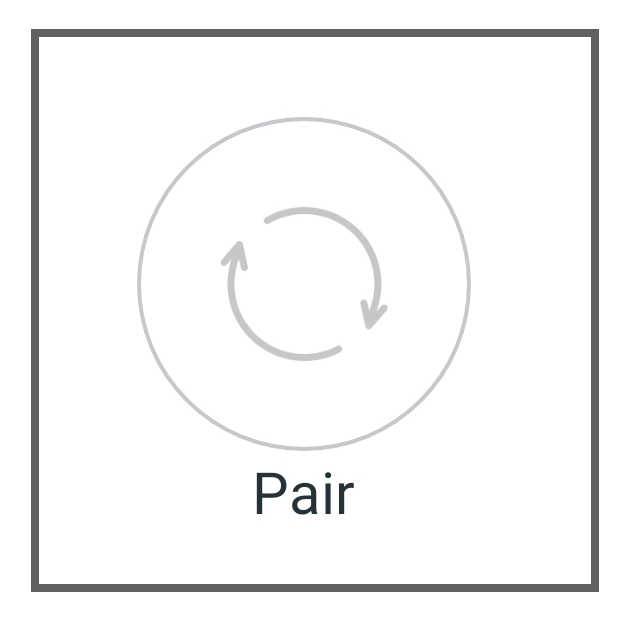

11. Press Pair.

    1. The shades should jog again.
12. Select Yes.
13. Test the functions.
    1. Open
    2. Close
    3. My
14. Select Done.
15. Select Close to make sure the Shades are fully closed for calibration.
16. Select Continue.
17. Select OPEN.
18. Select stop timer when the shades stop at the Upper  / top position
19. Select DONE.

Turning the Slider on and Off

1. Select the shade device
2. Select Device settings (top right in the Bond Home application).
3. Select Advanced Settings.
4. Select Edit Controller.
5. Turn set position on to enable, off to disable.
6. Select Save.

back to top

Operation

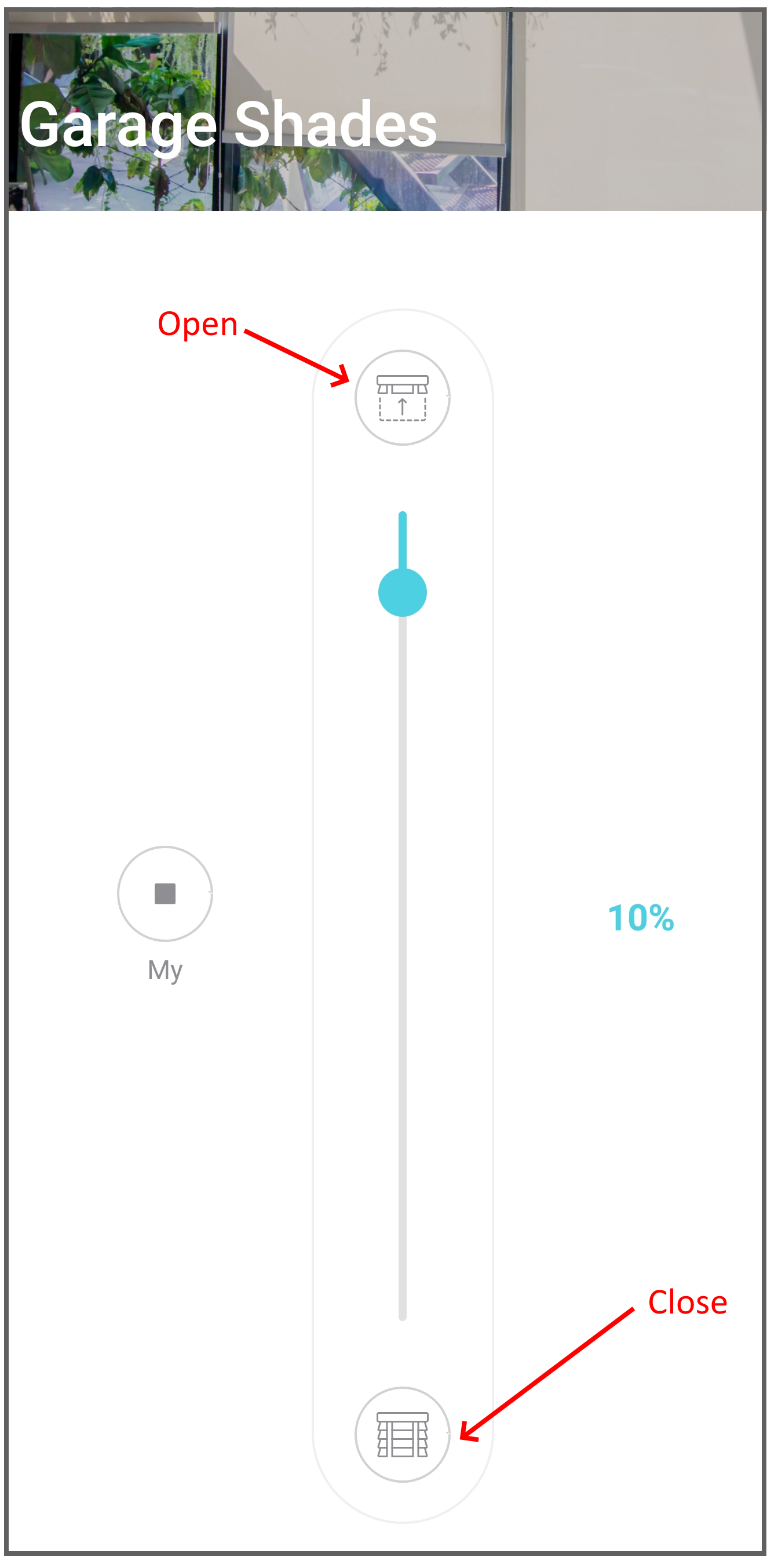

Using the slider you have the ability to open, close, set to your My position or use the slider to position anywhere between fully closed and open.

Open Press OPEN and the shade will move to the fully open position. Close Press CLOSE and the shade will move to the fully closed position. My Press MY to move the shade to the MY position you programmed for the shade. Slider Move the slider up or down to the desired position.  The indicator on the right will show the actual value.

back to top

Calibrating

1. Open the shade device.
2. Select Settings from the menu at the top right.
3. Select Advanced.
4. Choose Calibrate your device.
5. Select the Close button to fully close the shade.
6. Select Continue.
7. Select open
8. Stop the timer when the shade reaches its upper position.
   1. You can fine adjust the timer by selecting +/- and using the open and close buttons.
9. Select Continue.
10. Select Done.

back to top

Enable and calibrate

Motor technologies using this

Bofu, Telco

Enable the Slider

1. Open the shade in the Bond Home application.
2. Select menu at the top right.
3. Select Settings.
4. Choose Advanced.
5. Select Edit Controller.
6. Turn Set position on.
7. Save the change,

Calibrate the shade

1. After turning Set Position on, select Calibrate your device.
2. elect the Close button to fully close the shade.
3. Select Continue.
4. Select open
5. Stop the timer when the shade reaches its upper position.
   1. You can fine adjust the timer by selecting +/- and using the open and close buttons.
6. Select Continue.
7. Select Done.

Activating

Motor technologies using this

Mercury Blinds, Mercury Roller Shades

Enable the Slider

1. Open the shade in the Bond Home application.
2. Select menu at the top right.
3. Select Settings.
4. Choose Advanced.
5. Select Edit Controller.
6. Turn Set position on.
7. Save the change,
