(Bond Bridge Pro) How to connect to a new WiFI network using the Green (WiFi) Reset

This reset is used when you want to connect the Bond Bridge Pro unit to a different WiFi network or change the associated bond Home account without deleting thedevices.  This reset is also used if you were not able to connect to your wifi network (entered wrong password) and need to start the connection process again.

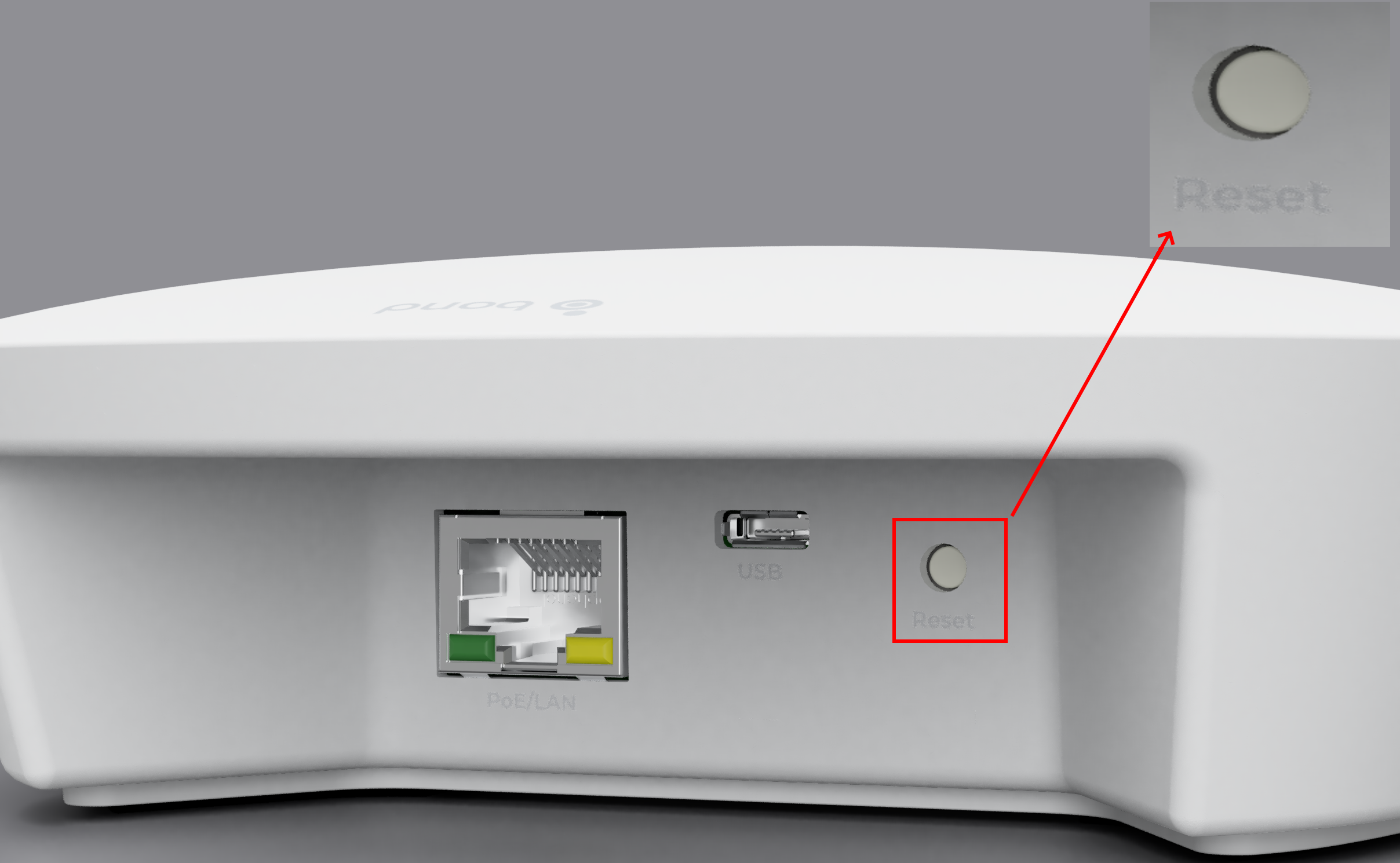

  • Use a small pointy object such as a toothpick to press and hold the reset switch located in a small hole next to the USB cable connector. Hold it down until the ring turns green (about 5 seconds) and then release.  The ring will blink white for several seconds and finally return to a flashing green.
    • NOTE - please release the reset button before 8 seconds as holding it longer will do a factory reset wiping all data.


  • Open the Bond home application and select the + sign to add a new device. None of your current device settings associated to the Bond Bridge Pro will be changed or removed.
    • If your Bond device has a QR code on the bottom Select SCAN QR CODE, if not select Bridge Pro.
  • Follow the setup instructions.

Once you have joined the new network you are ready to use your Bond Bridge Pro.
